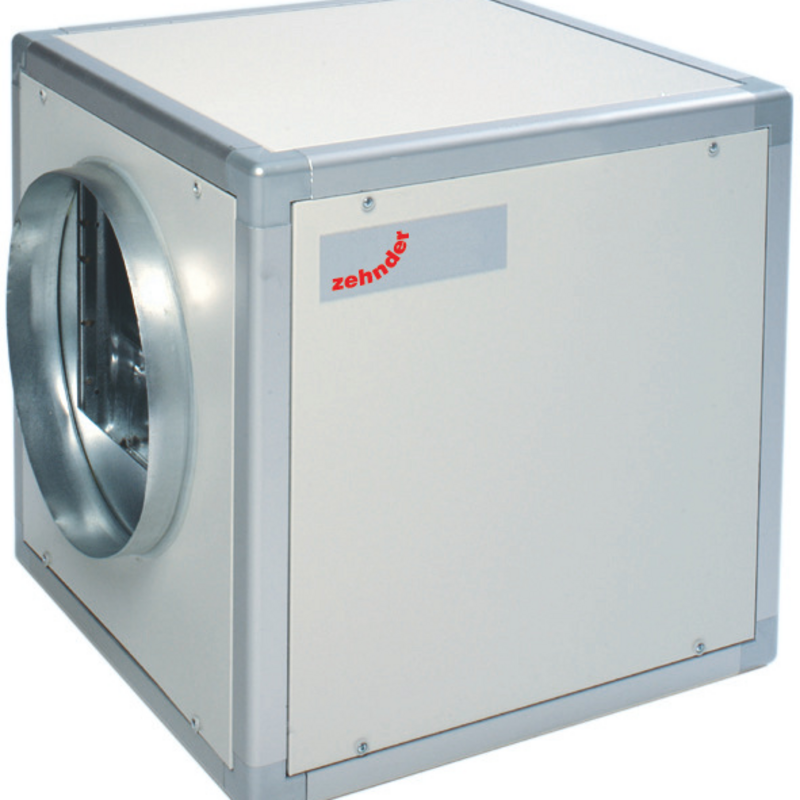

Zehnder - J.E. StorkAir, CVM, CVF
Artikelnummer 472000362

CVF 600/3800 + Kit Full

    Artikel specificaties

    LabelWaarde
    Bestelnummer472000362
    GTIN8717573018517
    Production modelCVF 600/3800 CB1 TAC3 FULL
    Pressure 2150 Pa
    Suitable for frequency control
    Length600 cm
    With thermal overload protection
    Height600 cm
    Width600 cm
    Duct height, suction400 mm
    Indirecte aandrijving
    Gelijkstroommotor
    Geschikt voor zwakstroomregeling
    Geschikt voor frequentieregeling
    2 toeren motor
    Max. air temperature55 °C
    Geschikt voor traforegeling
    AansluitingInsteekeind
    Geschikt voor elektronische regeling
    Housing materialSteel
    Duct diameter, exhaust400 mm
    Duct height, exhaust400 mm
    Direct-current motor
    Electrical connectionOther
    Opgenomen vermogen0.92 VA
    Air volume at pressure 23800 m³/h
    Lengte600 cm
    Suitable for electronic control
    Diameter huis400 mm
    Met thermische beveiliging
    Aansluitspanning230 V
    Hoogte600 cm
    Kanaaldiameter uitblaas400 mm
    Connection voltage230 V
    Kanaalhoogte uitblaas400 mm
    Duct width, suction400 mm
    Kanaalbreedte uitblaas400 mm
    Diameter housing400 mm
    Kanaaldiameter aanzuig400 mm
    Duct diameter, suction400 mm
    Kanaalhoogte aanzuig400 mm
    Duct width, exhaust400 mm
    Kanaalbreedte aanzuig400 mm
    2-speed motor
    Max. luchttemperatuur55 °C
    Indirect drive
    Beschermingsgraad (IP)IP44
    Suitable for low-current control
    Elektrische aansluitingOverig
    ConnectionInsert end
    Druk 2150 Pa
    Degree of protection (IP)IP44
    Druk 3250 Pa
    Power consumption0.92 VA
    Luchthoeveelheid bij druk 23800 m³/h
    Air volume at pressure 33600 m³/h
    Luchthoeveelheid bij druk 33600 m³/h
    Pressure 3250 Pa
    Luchthoeveelheid onbelast3800 m³/h
    Suitable for transformer control
    Breedte600 cm
    Air volume, unloaded3800 m³/h
