Bestelnummer | 471502134
|
GTIN | 8717573035637
|

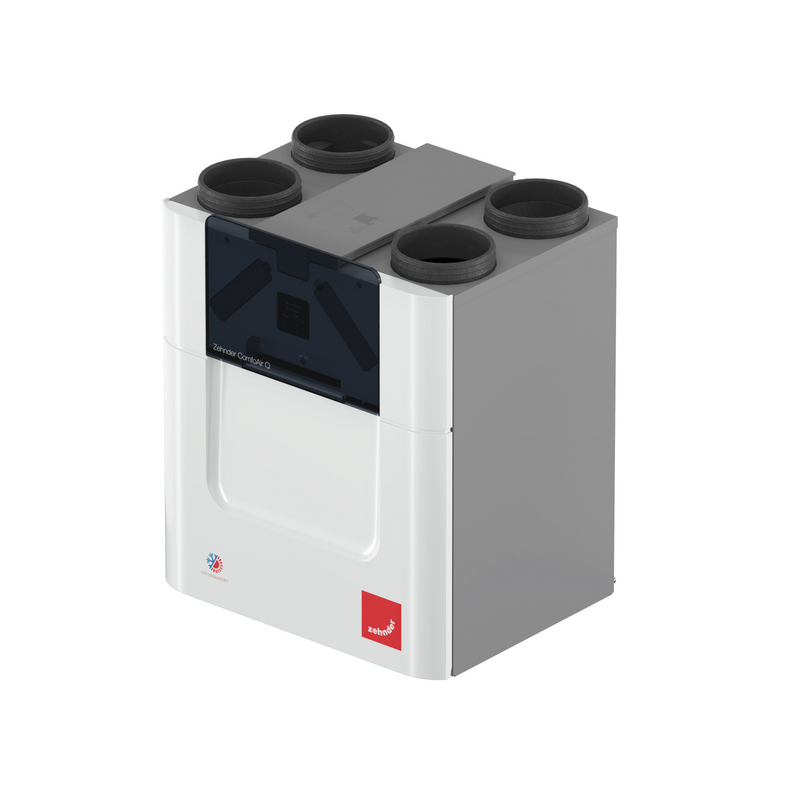

Production model | COMFOAIR Q450 NL L VV RF ST
|
Air flow rate | 450 m³/h
m³/h
|
Amperage | 9 A
A
|
Voedingsspanning | 230 V
V
|
Frequentie | 50 Hz
Hz
|
Geluidsniveau | 45
|
Energie klasse I | A
|
Energie klasse II | A+
|
Gewicht | 52
kg/m²
|
Type of frost protection | Heating element
|
Links/rechts oriëntatie omkeerbaar | |
Left/right orientation reversible | |
With zone controller | |
Weight | 52
kg/m
|
Residential connection, left side | |
Met constante druk regeling | |
Met constant volume regeling | |
Geschikt voor wandmontage | |
Max. luchthoeveelheid bij 100 Pa | 450
m³/h
|
Met thermische beveiliging | |
Afvoerfilter volgens ISO 16890-1:2016 | ISO Coarse
|
Toevoerfilter volgens ISO 16890-1:2016 | ISO ePM1
|
With internal humidity (RH) sensor | |
Type vorstbeveiliging | Verwarmingselement
|
Nominal duct diameter | 180-200
mm
|
Aansluitingen woningzijdig | Insteek-/kanaaleind
|
Suitable for (extra) carbon dioxide (CO2) sensor | |
Aansluitingen buitenluchtzijdig | Insteek-/kanaaleind
|
Roof connection, top | |
Met bypass | |
Suitable for central heating boiler connection | |
Met verwarmingselement | |
Suitable for zone controller | |
Met bedrade bediening | |
Voltage | 230
V
|
Geschikt voor (extra) (RV) vochtsensor | |
Breedte | 723
cm
|
Met interne (RV) vochtsensor | |
Frequentie | 50
MHz
|
Geschikt voor zoneregelaar | |
Suitable for wall mounting | |
Met zoneregelaar | |
Supply filter according to ISO 16890-1:2016 | ISO ePM1
|
Geschikt voor bedrade bediening | |
Depth | 570
cm
|
Suitable for wireless remote control | |
Residential connection, top | |
Vloermontage | |
Suitable for ceiling mounting | |
Housing material | Steel
|
Electrical connection | Connecting cord with plug with protective contact
|
Max. luchthoeveelheid bij 50 Pa | 450
m³/h
|
With wired control unit | |
Rendement toevoerfilter volgens ISO 16890-1:2016 | 65
%
|
Connections outdoor air side | Insert-/duct end
|
Max. air volume at 100 Pa | 450
m³/h
|
Geschikt voor (extra) kooldioxide (CO2) sensor | |
With internal carbon dioxide (CO2) sensor | |
Geschikt voor aansluiting cv-ketel | |
Type motor | EC (elektronische commutatie)
|
Dakaansluiting bovenkant | |
Diepte | 570
cm
|
Dakaansluiting zijkant | |
Hoogte | 810
cm
|
With bypass | |
Suitable for (extra) humidity (RH) sensor | |
Efficiency exhaust filter according to ISO 16890-1:2016 | 65
%
|
Met interne kooldioxide (CO2) sensor | |
Exhaust filter according to ISO 16890-1:2016 | ISO Coarse
|
Max. luchthoeveelheid bij 200 Pa | 450
m³/h
|
Height | 810
cm
|
Suitable for floor mounting | |
Max. luchthoeveelheid bij 150 Pa | 450
m³/h
|
Efficiency supply filter according to ISO 16890-1:2016 | 65
%
|
Woningaansluiting zijkant links | |
Frequency | 50
MHz
|
Woningaansluiting onderzijde | |
With digital display | |
Woningaansluiting bovenkant | |
Residential connection, underside | |
Woningaansluiting zijkant rechts | |
Residential connection, right side | |
Geschikt voor draadloze afstandsbediening | |
Roof connection, side | |
Width | 723
cm
|
Cos. phi conform EPN norm | 0.48
|
Number of phases | 1
|
Met digitaal display | |
With thermal overload protection | |
Rendement afvoerfilter volgens ISO 16890-1:2016 | 65
%
|
Max. air volume at 50 Pa | 450
m³/h
|
Type of motor | Electronically commutated (EC)
|
Suitable for wired control unit | |
Ondersteunt protocol voor Modbus | |
Supporting protocol for Modbus | |
With heating element | |
Aantal fasen | 1
|
With constant volume flow control | |
Connections residential side | Insert-/duct end
|
Spanning | 230
V
|
With constant pressure control | |
Nom. kanaaldiameter | 180-200
mm
|
Max. air volume at 150 Pa | 450
m³/h
|
Elektrische aansluiting | Aansluitsnoer met randaarde stekker
|
Max. air volume at 200 Pa | 450
m³/h
|
Geschikt voor plafondmontage | |
