Bestelnummer | 471220130
|
GTIN | 8717573035408
|

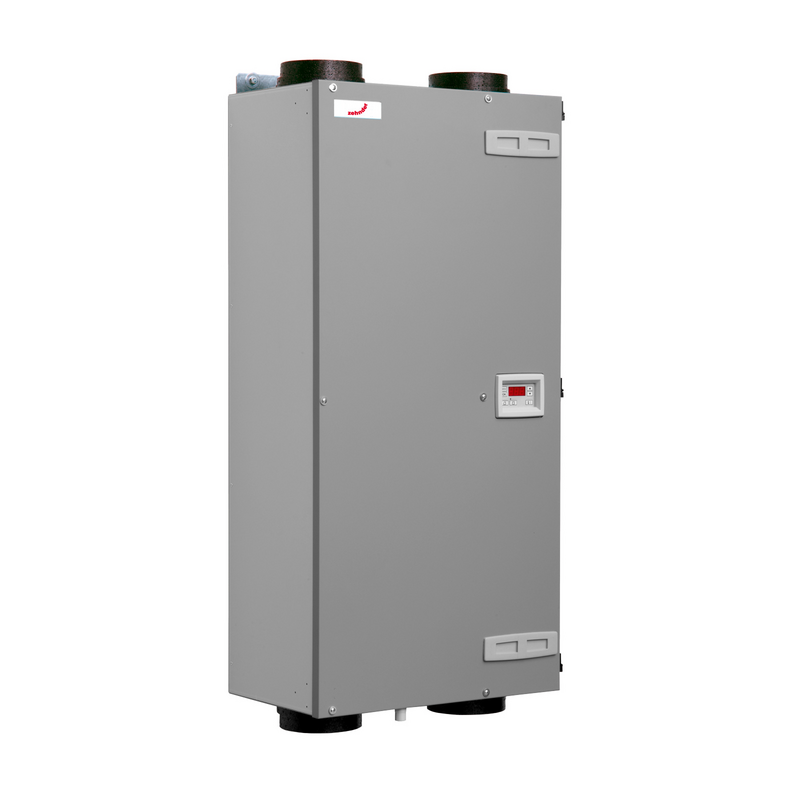

Production model | WHR920 BASIS PRH ERV L
|
Air flow rate | 230 m³/h
m³/h
|
Amperage | 6 A
A
|
Voedingsspanning | 230 V
V
|
Frequentie | 50 Hz
Hz
|
Geluidsniveau | 40
|
Energie klasse I | A
|
Energie klasse II | B
|
Number of phases | 1
|
Electrical connection | Perilex connecting cord
|
Frequency | 50
MHz
|
Roof connection, side | |
With internal humidity (RH) sensor | |
Beschermingsgraad (IP) | IP44
|
Met constante druk regeling | |
Spanning | 230
V
|
Geschikt voor wandmontage | |
Max. luchthoeveelheid bij 100 Pa | 230
m³/h
|
Met thermische beveiliging | |
Afvoerfilter volgens ISO 16890-1:2016 | ISO Coarse
|
Toevoerfilter volgens ISO 16890-1:2016 | ISO Coarse
|
Suitable for zone controller | |
Met constant volume regeling | |
Voltage | 230
V
|
Type vorstbeveiliging | Verwarmingselement
|
Energie-efficiëntieklasse | A
|
Aansluitingen woningzijdig | Insteek-/kanaaleind
|
Efficiency exhaust filter according to ISO 16890-1:2016 | 65
%
|
Aansluitingen buitenluchtzijdig | Insteek-/kanaaleind
|
Suitable for floor mounting | |
Met bypass | |
Residential connection, underside | |
Met verwarmingselement | |
Width | 535
cm
|
Met bedrade bediening | |
Kwaliteitsklasse materiaal behuizing | Overig
|
Geschikt voor (extra) (RV) vochtsensor | |
With wired control unit | |
Met interne (RV) vochtsensor | |
Type of frost protection | Heating element
|
Geschikt voor zoneregelaar | |
With internal carbon dioxide (CO2) sensor | |
Met zoneregelaar | |
Elektrische aansluiting | Aansluitsnoer met randaarde stekker
|
Geschikt voor bedrade bediening | |
Opgenomen vermogen conform EPN norm | 0.0384
kW
|
Suitable for wall mounting | |
Exhaust filter according to ISO 16890-1:2016 | ISO Coarse
|
Vloermontage | |
Thermisch rendement bij 70% luchthoeveelheid bij 50 Pa | 93.3
%
|
Efficiency supply filter according to ISO 16890-1:2016 | 65
%
|
With digital display | |
Rendement toevoerfilter volgens ISO 16890-1:2016 | 65
%
|
Residential connection, right side | |
Warmteterugwinning via | Kruis tegenstroomwisselaar
|
Geschikt voor (extra) kooldioxide (CO2) sensor | |
Materiaal warmtewisselaar | Overig
|
Geschikt voor aansluiting cv-ketel | |
Housing material | Steel
|
Dakaansluiting bovenkant | |
Max. air volume at 50 Pa | 225
m³/h
|
Dakaansluiting zijkant | |
With zone controller | |
Met sensor voor vluchtige organische stoffen (VOC) | |
Connections outdoor air side | Insert-/duct end
|
Max. air volume at 100 Pa | 230
m³/h
|
Max. luchthoeveelheid bij 250 Pa | 160
m³/h
|
Max. air volume at 300 Pa | 135
m³/h
|
Met interne kooldioxide (CO2) sensor | |
Links/rechts oriëntatie omkeerbaar | |
Max. luchthoeveelheid bij 200 Pa | 185
m³/h
|
Type motor | EC (elektronische commutatie)
|
Max. luchthoeveelheid bij 50 Pa | 225
m³/h
|
Max. luchthoeveelheid bij 150 Pa | 210
m³/h
|
Thermisch rendement conform EPN norm | 93.3
%
|
Max. luchthoeveelheid bij 300 Pa | 135
m³/h
|
With bypass | |
Woningaansluiting zijkant links | |
Suitable for (extra) humidity (RH) sensor | |
Woningaansluiting onderzijde | |
Type toerenregeling | Overig
|
Woningaansluiting bovenkant | |
Nominal duct diameter | 125-160
mm
|
Woningaansluiting zijkant rechts | |
Supply filter according to ISO 16890-1:2016 | ISO Coarse
|
Geschikt voor draadloze afstandsbediening | |
Height | 1108
cm
|
Weight | 37
kg/m
|
Cos. phi conform EPN norm | 0.53
|
Depth | 315
cm
|
Met digitaal display | |
Suitable for (extra) carbon dioxide (CO2) sensor | |
Rendement afvoerfilter volgens ISO 16890-1:2016 | 65
%
|
Suitable for wireless remote control | |
Residential connection, left side | |
Residential connection, top | |
Ondersteunt protocol voor Modbus | |
Roof connection, top | |
Materiaal behuizing | Staal
|
Aantal fasen | 1
|
Suitable for ceiling mounting | |
Left/right orientation reversible | |
Spanning | 230
V
|
Opgenomen vermogen bij max. luchthoeveelheid bij 100 Pa | 0.143
kW
|
Nom. kanaaldiameter | 125-160
mm
|
Energie-efficiëntieklasse (1253/2014/EU) | A
|
Elektrische aansluiting | Aansluitsnoer met randaarde stekker
|
With thermal overload protection | |
Type motor | EC (elektronische commutatie)
|
Suitable for central heating boiler connection | |
Breedte | 535
cm
|
Vermogen elektrisch verwarmingselement | 730-785
W
|
Diepte | 321
cm
|
Type of motor | Electronically commutated (EC)
|
Gewicht | 37
kg/m
|
Suitable for wired control unit | |
Hoogte | 1108
cm
|
Supporting protocol for Modbus | |
Frequentie | 50
MHz
|
Geschikt voor extra VOC-sensor | |
Diepte | 321
cm
|
With heating element | |
Hoogte | 1108
cm
|
With constant volume flow control | |
Gewicht | 37
kg/m
|
Connections residential side | Insert-/duct end
|
Nom. kanaaldiameter | 125-160
mm
|
With constant pressure control | |
Frequentie | 50
MHz
|
Max. air volume at 150 Pa | 210
m³/h
|
Materiaal behuizing | Staal gecoat
|
Max. air volume at 250 Pa | 160
m³/h
|
Breedte | 535
cm
|
Max. air volume at 200 Pa | 185
m³/h
|
Geschikt voor plafondmontage | |
